AQM-37C Jayhawk Model Rocket Kit

LISTING < PREV NEXT >

AQM-37C Jayhawk Model Rocket Kit


$63.70
In Stock. Ships Apr 7

  • Uses D Estes or D, E Aerotech Motors
  • Ejection Baffle (no wadding required)

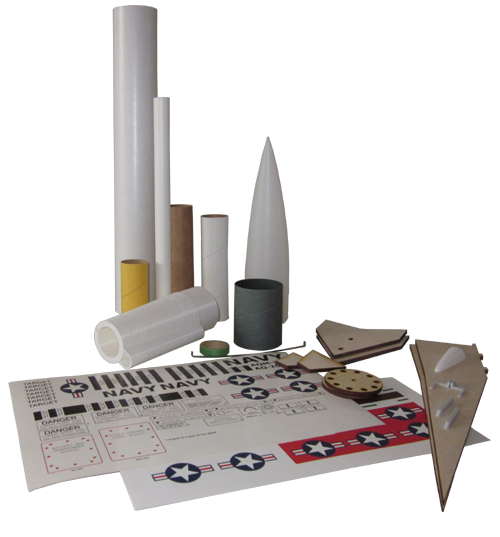

  • Comes with 30 parts including plastic Tail Cone, Pitot tube, Belly Tube and its nose cone and antennas.
  • 2 sets of laser-cut fins and two sheets of water-slide decals are included.

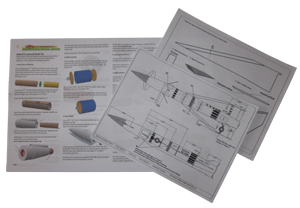

  • Colorful instructions and 2 decal placement schemes are provided.
  • Over 20" Tall
  • Advanced Assembly Skills Required
Jayhawk PartsJayhawk Instructions

Recommended Single Use Engines (apogee):

D12-5 (600 ft), E20-7 (1320 ft)

Recommended 24/40 Reloads (apogee):

D15-5 (740 ft) * remove 2 sec off the 7 second version of this reload using delay drilling tool

Specifications

  • Length: 20.25" (51 cm)
  • Diameter: 1.64" (42 mm)
  • Weight: 6.5 oz. (184 g)

Description

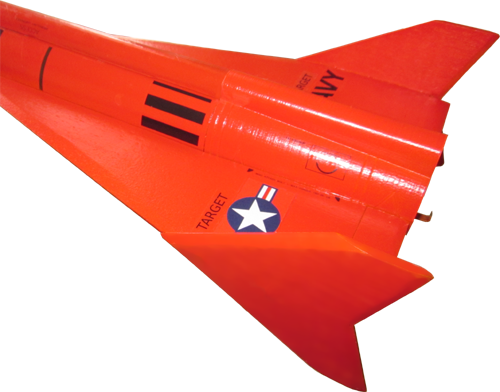

This is a 1/8 scale model of the Jayhawk AQM-37C target drone, which has been in operation since 1961. These target drones can travel at great speed and are used to simulate a variety of realistic threat scenarios.

3 types of glue used to build this model. For that true scale looking fins the Jayhawk fins must be tapered. There are a lot of decals, which will take a lot of time to apply.

Construction Video*

* This video does not substitute the instructions provided with rocket. The videos below provided by an independent builder and some steps are not exactly as per instructions.

Requires

Jayhawk Tail Jayhawk Parts



  • Manufactured by: Rocketarium
